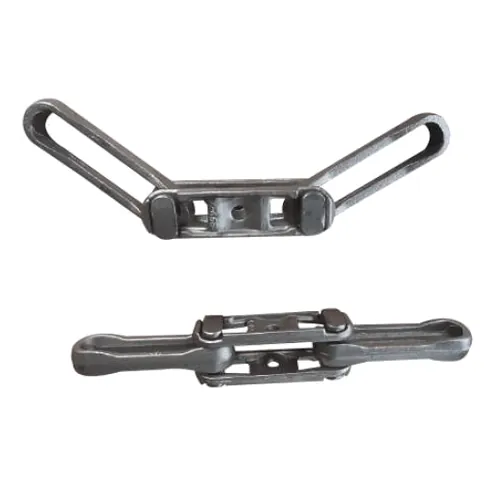

Drop-forged rivetless trolley chain
The overhead-conveyor standard: drop-forged links that assemble by hand, ultimate strengths to 32,700 kgf, and the trolleys and pushers to run with them.
No rivets, by design
An overhead conveyor can run kilometres of chain around a plant, and when a link fails at height, nobody wants to bring the circuit down to a bench. Rivetless chain solves it structurally: drop-forged links and pins that assemble and dismantle by hand, so any link can be swapped in place.
The X-style designs are built for overhead conveyor and other special applications, proportioned to flex transversely on a shorter radius, with a mid-pitch panel in the side bars that strengthens the sidebar and stops material falling through the link.
The X-series
| Chain | Pitch | Pitch (mm) | Ultimate strength (kgf, min.) | Weight (kg/m) |
|---|---|---|---|---|
| X348 | 3.015" | 76.6 | 10,000 | 2.85 |
| X458 | 4.031" | 102.4 | 19,091 | 4.65 |
| X678 | 6.031" | 153.2 | 32,717 | 9.30 |
| PX678 | 6.031" | 153.2 | 32,727 | 9.50 |
Related products and accessories: trolleys, side-link pushers, drive dogs and caterpillar dog chain. Full dimensional tables available on request. Supplied to order — contact us for current lead time.
Overhead and enclosed-track lines
- Overhead monorail conveyors in assembly and finishing
- Paint, powder-coat and treatment lines
- Abattoir and food-processing overhead rails
- Heavy floor conveyors using X-series chain and pushers
X-series chain identifies quickly from the pitch: 348, 458 and 678 are distinct sizes. A photo of a link and trolley is usually enough to quote the chain and running gear together.
Straight answers
What is drop-forged rivetless chain?
A chain assembled from drop-forged links and pins with no rivets. Links are assembled and dismantled by hand, which is why it is the standard chain for overhead conveyors: any link can be dropped out and replaced in place, without splitting tools.
What does the X in X348 or X678 mean?
The X designates a design proportioned to flex transversely on a shorter radius, with side bars made with a mid-pitch panel that strengthens the sidebar and prevents material falling through the link.
Do you supply the trolleys and attachments as well?
Yes. Related products and accessories include trolleys, side-link pushers, drive dogs and caterpillar dog chain. Tell us the conveyor and we will quote the chain and running gear together.
Overhead conveyor due a rechain?
Send the pitch, the circuit length and a photo of the trolley, and we will quote chain and running gear together.
